Aerospatiale ATR 72-600

Aerospatiale ATR 72-600 Information

General Presentation

Engineered by enhanced technology, -600 series is a large step forward in regional transportation market.

ATR -600 bring new operational ability to the ATR family through:

• Position on takeoff performance on short runways,
• Increased max payload,
• Reduce maintenance costs,
• Redesigned cabin,
• Latest technology avionics.

Significant product upgrades and innovative solutions to serve the low operating costs and high reliability.

ATR -600 series to enjoy the latest innovations in the cockpit with simplified, integrated LCD advanced functions, enhancing safety, improving handling for pilots and maintenance cost savings.

Enhancement Technology

NEW AVIONICS SUITE

The main design purpose of the new ATR avionics suite 'is to provide the crew with the most realistic picture of the situation in the aviation and most comprehensive displays of aircraft systems, as well as to take care of the future growth needs of navigation and communication facilities by the end of the decade.

Medium, integrated LCD advanced functions will improve the safety, reliability, handling for the pilot, with the contribution to cost savings and weight loss maintenance.

Cockpit are designed to replace most of these instruments with five 6 "x 8" LCD display consists of:

• 2 Primary Flight Displays (PFD),
• 2 Multi-Function Displays (MFD),
• 1 Machine & Warning Display (EWD)

MULTI-PURPOSE COMPUTER

PERFORMANCE MONITORING

1 single computer to:

• APM (Aircraft Performance Monitoring) give you awareness of an aircraft in flight behavior
• EHS (Enhanced Surveillance) is needed by March of 2007, for the acquisition of aircraft and transfer parameters to transponder
• ADS-B (Auto Dependent Surveillance - Broadcast) for aircraft acquisition and transfer parameters to transponder

MAINTENANCE

• Aircraft Centralized Maintenance System
• QAR (Quick Access Recorder) made it possible to record the FDR parameter on PCMCIA card
• G-Meter record vertical acceleration flight and landing without FDR read
• Maintenance / monitoring of availability BITE BITE messages in the cockpit, providing recommendations in plain text
• ACMS (Aircraft Condition Monitoring System) for aircraft parameter analysis for troubleshooting purposes
• FDEP (Flight Data Entry and printout) simulation (FDAU interface) FDEP normal text page in Computer Display
• Machine Parameters Processing and Downloading

ACARS - AIRCRAFT COMMUNICATION

• Up / down-loading digital data via VHF network
• Adapted to specific devices
• Increased communication between the base aircraft, operators and ATC (Air Traffic Control)

TYPE OF MESSAGE

• Position reporting
• ATIS report
• Permission pre-departure
• Passenger services
• Take-off data
• Emergency Reports
• Delay reports
• BBM status
• Reported Machines

OPERATOR BENEFITS

• Faster and more accurate flow of information
• Enhanced aviation security
• Increase operational efficiency
• Increased passenger services
• Reduce your workload
• Reduce maintenance and operating costs

EFB - ELECTRONIC FLIGHT BAG

Providing paperless cockpit crew with, replacing the current paper-based documentation.

Pilot will have at their fingertips moving map, weather forecast graphic, field mapping and various flight data and functions.

EFB FEATURES

• Checklists
• Aircraft Manual
• Electronic graphic
• Performance calculation
• Dedicated client application

INTEGRATED ACMS (centralized AIRCRAFT MAINTENANCE SYSTEM

Auto Pilot Flight Report

In-flight / on ground data link when combined with ACARS

Improved Maintenance

A reliable monitoring system

Effective troubleshooting

Increased Dispatchability

• Identification of damaged LRU1
• Minimum Equipment
• List (MEL) management

Superior Comfort

-600 New draw benefits from the widest cabin in the turboprop market, providing maximum passenger space and set a high standard of comfort.

New style interior offers more luggage space and a feeling of space.

Fine, soft new line of ceiling and side panel cabin, re-designed and re-designed to offer passengers more space and light, creating a harmonious and balanced environment where travel is a pleasure.

RESTYLED ENVIRONMENT AND MODERN INTERIORS

These changes included in the new definition of harmony cabin, called "Elegance", is selected by many operators of ATR.

To meet the most demanding airline and passenger expectations, new types of chairs that are offered, the concept of modern style and light weight, combined with exceptional features low maintenance, meet the latest requirements of the flight cost consciously.

LED LIGHTING

Cabin lighting based on LED technology warmer and more pleasant atmosphere with soft lighting and spread.

the right combination of:

• Low heat
• Low failure rate
• Low maintenance
• Low weight & volume
• Low power
• No radio emission

with:

• High efficiency
• High reliability
• Live longer

IN-FLIGHT ENTERTAINMENT (IFE) SYSTEM

To respond to growing market needs and requirements derived from passengers and operators, ATR is offering IFE system for the passenger cabin more attractive.

MAIN FEATURES:

• Integrated in PSU
• 5'' screen
• Up to 18 scenes in policy configuration
• Motorized
• Low weight
• Low maintenance

Enhanced Performance

PW127M: ADDITIONAL INCOME IN ENVIRONMENTAL DAMAGE

ATR -600 series offer increased capacity, making the aircraft more attractive, even in the case of operational reach.

ATR offers a more powerful engine: PW127M, which gives strength thermodynamics 5% higher in the Take-Off and Continuous Max.

Thanks to a new level, the performance will be improved in the following ways:

• Take-off weight of 500 kg and 600 kg (1100 pounds to 1320 pounds) when there are limitations
• Clean Ceiling Single-machine increased by approximately 1,000 ft

MULTI-RATED ENGINE POWER

• A unique engine hardware PW 127 for three power settings: PW127E, PW127F, PW127M.
• Level machine selected through the fuselage identification system (MEE multi-configuration) Two power levels are available for the ATR 72, allowing the PW127F for standard operations or the operations PW127M for 'hot & high', through the concept of "Operation Flex '.
• The benefits of this concept for an airline to come essentially from the ATR fleet mix optimization. Fleet management endurance machine (Life Limited Parts impact) will be facilitated and controlled and optimized maintenance costs.
• These machines are made available in early 2008 and is planned to be retrofitable on ATR -500 Series.

Short track TAKE-OFF PERFORMANCE (RTO 100%)

Thanks to full RTO takeoff procedures, ATR 72-600 can carry up to 70 passengers at 300 Nm (550 km) distance sector (RW10, no wind, dry runway, 10 ° C).

ATR 72 has a 6 ° steep slopes approach capability, which allows the operation to a private airport access

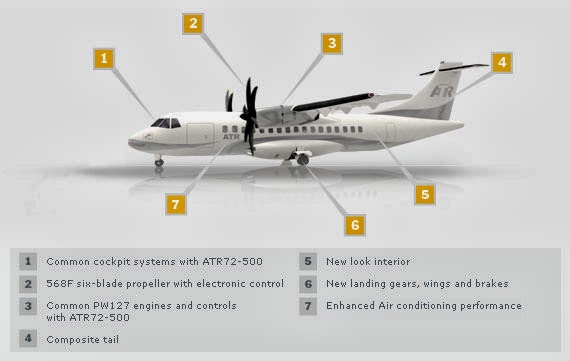

Aerospatiale ATR 42-500

Aerospatiale ATR 42-500 Information

General Presentation

ATR 42-500 is the latest development of the ATR 42. Interesting case of in-service experience of around 700 ATR aircraft flying worldwide, with average dispatch reliability of more than 99.6 % .

Thanks to Pratt and Whitney Canada PW127E machine , ATR 42-500 offers :

A cruising speed of 300 kt

A quick climb from 1,500 ft to 17,000 ft in less than 10 minutes

Take - off and single exceptional engine performance maintained even in hot and high conditions

Excellent short- field performance and affordability step approach

Performance

ATR 42-500 offers a combination of high overall performance and amenities in its class , while maintaining a competitive cost efficiency, which is the brand image of ATR .

ATR 42-500 extensive secondary structure is made of corrosion-resistant composite material .

Operating weight with standard adjustable Generous new regulations provide the ATR 42-500 with a maximum reach out and 840 Nm or 370 Nm from way back without refueling, both full passenger payload .

Short and narrow runway, hot and high airport , claiming the airport is day-to- day environment of the ATR 42-500 worldwide. From Latin America to the Asia - Pacific , everywhere in Europe and the Middle East and Africa climate grace , ATR 42-500 provides unmatched flexibility and reliability , resulting in revenue and profit for regional flights .

Comfort

ATR 42-500 provides passengers with on-board facilities and services comparable to a jet plane

High ceilings Cruise around 7,000 m ( 21,000 ft) with attached stability

Large overhead garbage including holdings to facilitate passengers and crew movement along the cabin

Optimized view ( windows more than a row of seats)

Individual reading lights and cabin staff call system

Quiet cabin , comfortable and spacious with a new list item design

ATR 42-500 cabin layout benefits from an increase in noise and vibration :

• Appendix panel and overhead trash to a structure with a specially designed damper , avoiding the transmission of vibration from the structure to the interior furnishings
• Cabin partition are treated to reduce the phenomenon of resonance in the front and rear cabin area
• Separation of new blankets with optimized thickness and made ​​of water resistant material
• Located in the rigid frame Vector - Vector
• Installation of Dynamic Vibration emphasis on the upper side of the frame and the floor beams , greatly reduce the transmission of sound produced by Vector - Vector
• Skin damping treatment through viscomaterial strip on the panel , reducing sound transmission to the skin

Environment

ATR always make optimal use of advanced technology to provide fuel-efficient aircraft for the aviation industry. ATR aims to develop its contribution to ensuring a sustainable future for the aviation industry , and the reconciliation of air transport growth and reducing environmental impact .

Highly efficient and operate at low speed , ATR has contributed a fraction of the emissions due to the aircraft. They operate at low altitude , had no effect on the ozone layer and upper atmosphere , and provides optimal capacity , to adapt to the needs of regional frequencies .

Materials, procedures and technologies used to produce ATR continually improved and monitored to reduce the environmental impact throughout the life cycle :

• Optimize the design of the aircraft continued to lose weight , fuel consumption, noise and pollutant emission.s.
• Integrate issues of early end-of- life aircraft design.
• Reduce waste production at source and increase the level of recycling waste.

Latest propulsion technology combined with optimally designed high -lift system to make the ATR -500 quiet neighboors New Generation aircraft . They meet the requirements of the ICAO noise with wide margins , and therefore keep the minimum environmental impact .

More efficient than the ATR 42-500 regional jet aircraft on short -haul routes : it produces about 20 % less CO2 per passenger - km from the new generation of jets and up to three times less CO2 than older ones.

Cost Efficiency

ATR 42-500 has the lowest seat fee - mile segment of the market .

At 300 Nm sector , the ATR 42-500 less fuel consumption characteristics , treatment costs and lower machine costs airport is significantly lower , when compared with the jet 50 - seater .

ATR 42-500 has the advantage of proven design and high level of similarity with other models to reduce training and maintenance costs and ensure more profits increase cost efficiency .

ATR 42-500 major gains on direct competitors are :

• Higher cruising speed
• Reduce costs associated with time
• Airport fees lower
• Lower maintenance costs fuselage

Aerospatiale ATR 42-400

Aerospatiale ATR 42-400 Description

ATR 42-400 is an upgraded version of the -320 using six-bladed propellers on otherwise identical PW121 engines. Three ATR 42-400 was delivered to the Italian Government as the ATR 42 "Surveyor" version. Only two ATR 42-400 civilian manufactured (msn 487 & 491).

ATR 42-400 Specification

Fuel consumption:         8 lbs per km

Loading capacity:          8350 Lbs/km

Passenger seats:           50

Max range:                    1.611 Km (1.001 Miles)

Cruise speed:                556 Km/h

Pilot recuired:                2

Cabin crew recuired:      2

Mechanics recuired:      1

Cleaning recuired:         1

Check-in crew:              2

Supervisors:                  0

Aeorospatiale ATR 42-320

Description Aeorospatiale ATR 42-320

Aerospatiale ATR 42-320 aircraft is still one family with Aerospatiale ATR 42-300 aircraft.

Aerospatiale ATRr 42-320 specifications:

Fuel consumption:        8 lbs per km

Loading capacity:         7.682 Lbs

Passenger seat:           46

max range:                1.945 Km (1.209 Miles)

Cruise speed:              498 Km/h

Pilot recuired:              2

Cabin crew recuired:    1

Mechanics recuired:     2

Cleaning recuired:        1

Check-in crew:             2

Supervisor:                  0

Aerospatiale ATR 42-320  Interior

Aerospatiale ATR 42-300

History
Aerospatiale and Aeritalia ( now Alenia ) established Avions de Transport Regional as a Groupement d' Economique INTA © ret under French law to develop a family of regional airliners . ATR - 42 is the first aircraft consortium and launched in October 1981.

The first of two ATR - 42 prototype flew for the first time on August 16, 1984 . Italian and French government awarded certification in September 1985 and the first ATR - 42 entered airline service on December 9, 1985 .

Early ATR - 42-300 is the standard production version of the ATR - 42 family until 1996 and has a capacity of greater variety and higher takeoff weight of the prototype . The same ATR - 42-320 ( also withdrawn in 1996 ) differed in having more powerful PW - 121 machines for hot and high performance is better, whereas ATR - 42 Cargo is change good / fast version of 42-300 passengers .

ATR -42 - 500 is a significantly improved version of the first plane and the interior features a revised , stronger PW - 127Es to significantly increase the cruising speed ( 565km/h/305kt ) driving six propeller - propeller blades , a 1850km ( 1000nm ) maximum reach, efis cockpit , elevators and rudder extending ATR - 72 ( described separately ) , plus new brakes and landing gear , and strengthened wing and body weight of the aircraft to a higher level. First ATR - 42-500 deliveries in October 1995 .

ATR is part of the Aero International ( Regional ) , a consortium of regional aircraft which was established in January 1996 to incorporate ATR , Avro and Jetstream . AI ( R ) handle sales, marketing and support for both Atrs , plus RJS Avro and Jetstream 41, until liquidation in mid-1998 when the ATR regained its independence .

In mid-2000, ATR launches cargo conversion program for both -42 and -72 , which involves installing advanced freight door and modify the cabin for delivery. ATR - 42 Freighter can carry 5.8 tons of cargo . DHL Aviation Africa is the launch customer with two converted ATR - 42 -300 redelivered in September and December 2000.

Powerplants
ATR - 42-300 - Two flat- rated 1340kW ( 1800shp ) Pratt & Whitney Canada PW - 120 turboprops driving four- blade c / s Hamilton Standard propeller - propeller .
ATR - 42-320 - Two flat- rated 1417kW ( 1900shp ) PW - 121s .
ATR - 42-500 - Two PW - 127Es derated to 1610kW ( 2160shp ) driving six blade RatierFagiec / Hamilton Standard props .

Performance
ATR - 42-300 - Max cruising speed 490km / h ( 265kt ) economical cruising speed 450km / h ( 243kt ) . Range with max fuel and max cruising recommendations speed 4480km ( 2420nm ) , or 5040km ( 2720nm ) with economical cruising speed .
ATR - 42-320 - Just like ATR - 42-300 except max cruising speed 498km / h ( 269kt ) .
ATR - 42-500 - Cruising speed 563km / h ( 304kt ) . Max range of 1850km ( 1000nm ) .

Weight
ATR - 42-300 - Operating empty 10,285 kg ( 22,674 pounds ) , max take off 16 700 kg ( 36,817 pounds ) .
ATR - 42-320 - vacant Operations 10.290 kg ( 22,685 pounds ) , max take off fit 42-300 .
ATR - 42-500 - Operating empty 11,250 kg ( 24,802 pounds ) , max take off 18,600 kg ( 41,005 pounds ) .

Dimensions
Wing span 24.57m ( 80ft 8in ) , length 22.67m ( 74ft 5in ) , height 7.59m ( 24ft 11in ) . 54.5m2 wing area ( 586.6sq ft ) .

Capacity
Flightcrew two . Maximum passenger accommodations for 50 , 48 or 46 at 76cm ​​( 30in ) pitch and four line . Special settings for 42 seats in 81cm ( 32in ) field.
ATR - 42 Cargo - Nine containers with a capacity of 4000kg .

Production
At the end of 2002, total orders for all versions of ATR - 42 stood at 369 with 367 delivered.

Country of Origin
France and Italy

Type
42 seat regional turboprop passenger

Aerospatiale N 262

Aerospatiale N 262

The Aerospatiale ( Nord Aviation) 262A is a short distance commuter jet machining up to 29 passengers. Originally known as Super Broussard MH262 , Nord 262 was designed by former la Société des Avions Max Holste . Development of 17 seat commuter light aircraft , known as MH250 Super Broussard began in 1957 . Prototype MH250 , supported by two Pratt & Whitney Wasp - 1830 piston engine , first flew on May 20, 1959 . It was quickly realized that the turboprop aircraft should work and further development of the aircraft resulted MH260 grow and supported by Turbomeca Bastan turboprop . In October 1959, Avions Max Holste signing a co - production with Nord Aviation until new aircraft could be produced . On February 16, 1960 Cessna Aircraft became a 49% shareholder in la Société des Avions Max Holste , entitled Nouvelle Société des Avions Max Holste .

The name was later changed to Reims Aviation SA Prototype MH260 , the F - WJDV , flew on July 29, 1960 . Ten MH260 with the rectangular plane built by Nord Aviation in Nord 260. In 1961 from a significant redesign of the Nord 260. It leads to Nord 262 with a redesigned fuselage of a uniform circle , pressure and more powerful powerplants . This pressure Nord 262 first flew on December 24, 1962 . On January 1, 1970 the three major French aircraft company nationalized - Sud - Aviation , Nord Aviation and missile manufacturing company , SEREB - merged into Aérospatiale . As a result of this merger Nord 262 became Aérospatiale products . When production ended in 1976 , a total of 110 Aerospatiale ( Nord ) 262 built.

On 11 April 1970 Nord 262A OY - BCO and OY - BKR from Cimber Air Denmark A / S comes in eelde Groningen in the Netherlands . The OY - BCO first flight on March 30, 1967 as F - WNDD and served as OY - BCO to Cimber Air on July 8, 1967 . It is sold in the United States in 1977 and registered with the N274A Altair . N274A transferred to the National Commuter Airlines April 1982 ; rented to Pompano Airways in January 1984. N274A registration canceled on March 3, 1999 as the Nord sold in Honduras . In Honduras this Nord 262 operated by Aerolineas Sosa as HR - ARP .

Data Aerospatiale N 262

powerplants
Fregate - Two 843kW ( 1130shp ) Turbomeca Bastan VIIC turboprops driving three blade variable field FH.146 Ratier Figeac propeller - propeller .
Mohawk 298 - Two 880kW ( 1180shp ) PT6A45 Pratt & Whitney Canada turboprops driving five- blade Hamilton Standard variable field props .

performance
Fregate - Max level speed of 418km / h ( 225kt ) at 20,000 ft , economical cruising speed 408km / h ( 220kt ) . Max Range with full fuel and no proposal 2400km ( 1295nm ) , range with 26 pax and suggestions 1020km ( 550nm ) .
Mohawk 298 - Max Speed ​​385km / h ( 208kt ) , economical cruising speed 375 km / h ( 203kt ) . Max Range with full fuel and no proposal 2132km ( 1151nm ) .

weight
Fregate - 6200kg Policy empty ( £ 13,668 ) , max take off of 10,800 kg ( 23,810 pounds ) .
Mohawk 298 - 7030kg Vacancy ( £ 15,498 ) , max take off 10,600 kg ( 23,370 pounds ) .

size
Fregate & Mohawk 298 - The wings of 22.60m ( 74ft 2in ) , length 19.28m ( 63ft 3in ) , height 6.21m ( 20ft 4in ) . 55.0m2 wing area ( 592sq ft ) .

capacity
Crew of two and max seating for 29 passengers in three line . Standard layout seating for 26 passengers.

production
110 from around 262 variants ( including 298 Mohawk and other military orders ) was built .
